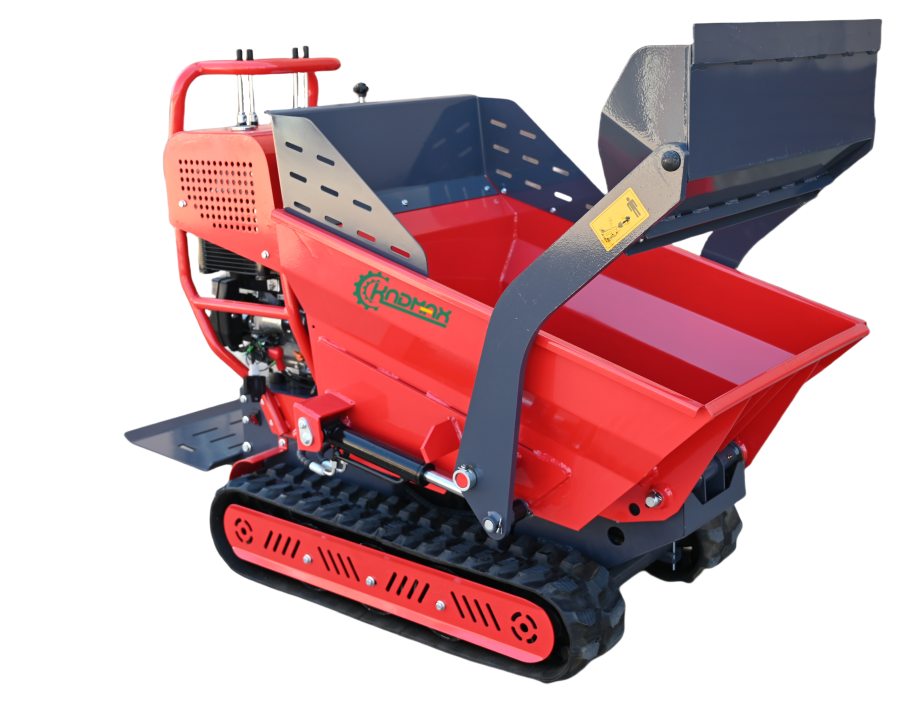

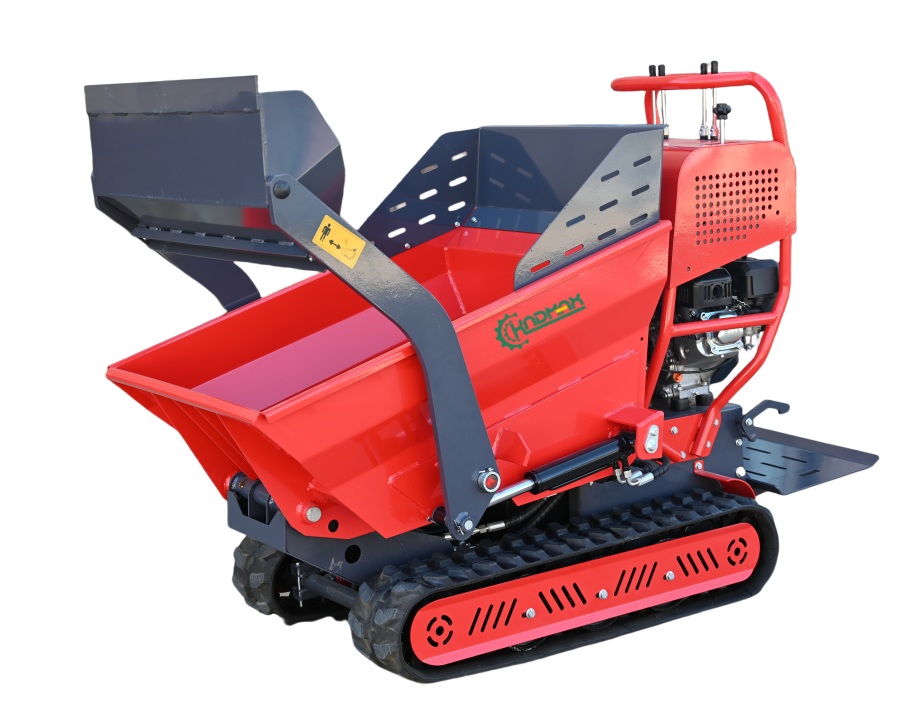

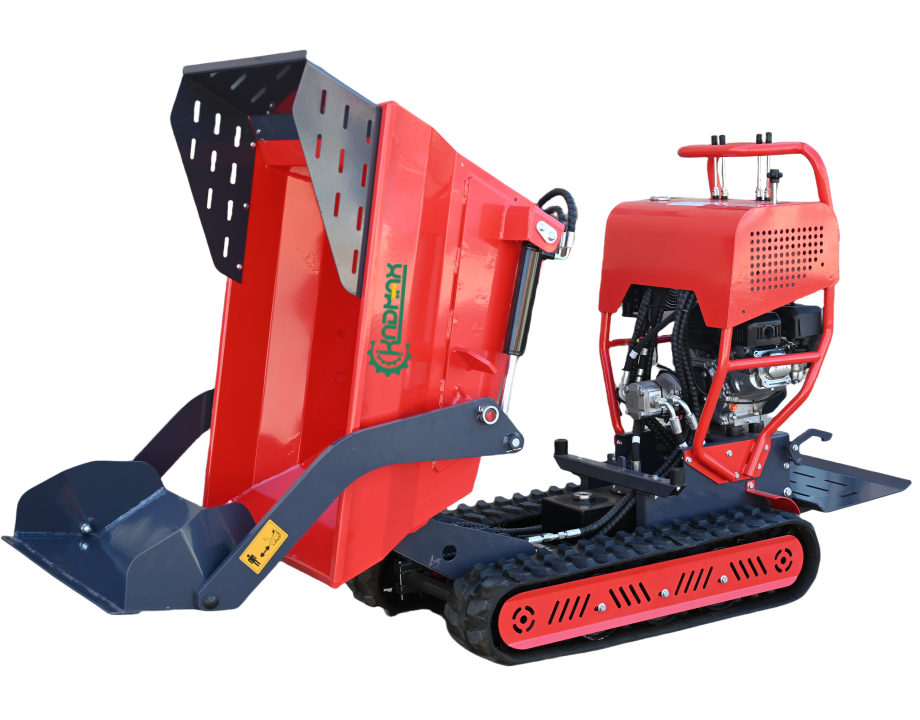

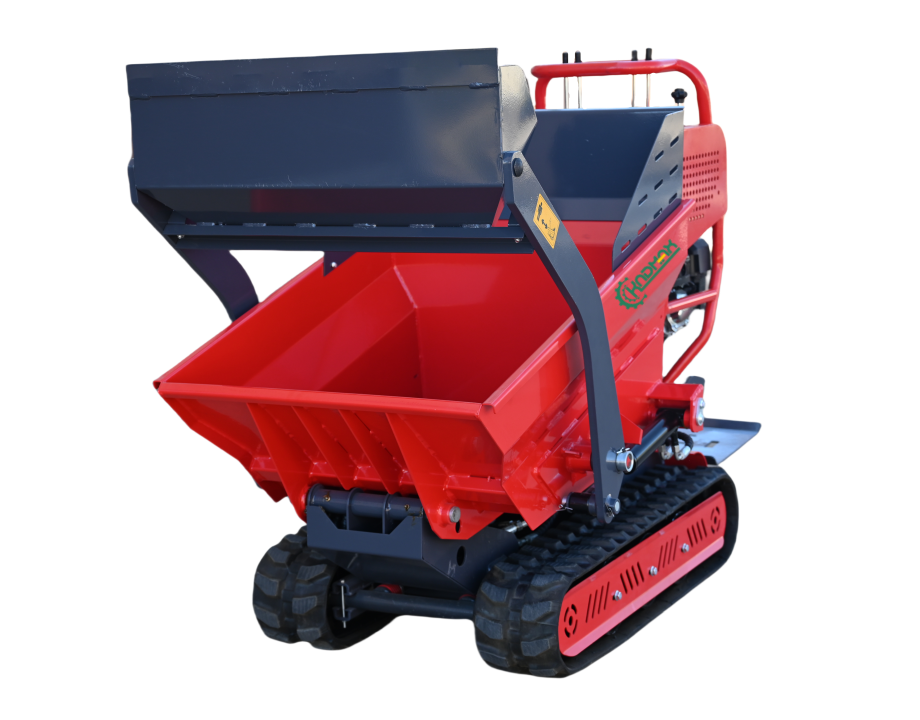

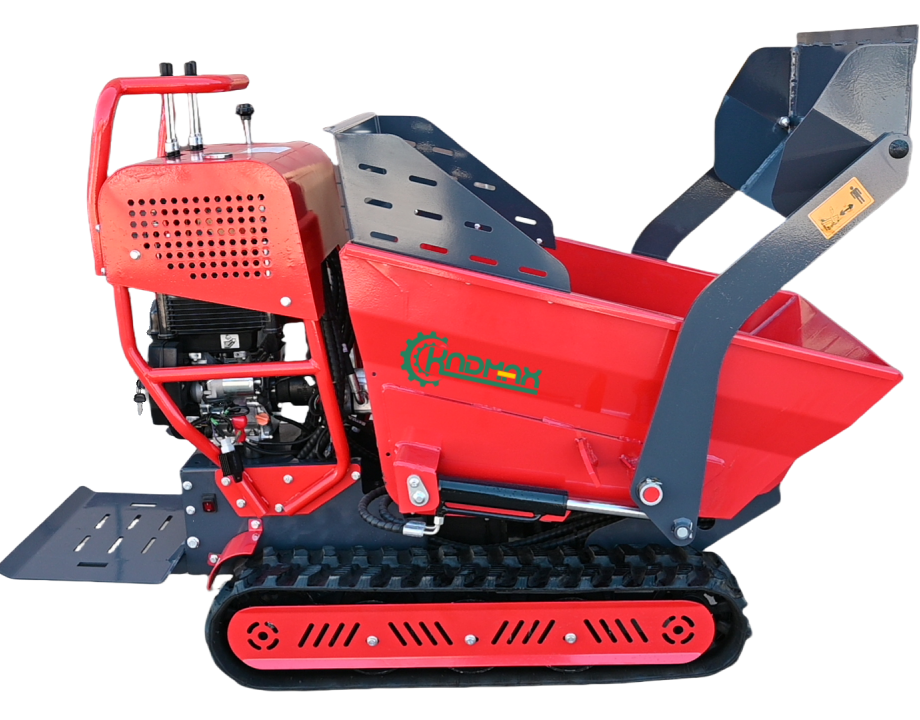

KFD50 6.5HP Construction Site Use Self-Loading Crawler Truck 500kg Hydraulic Tracked Dumper
Description
All-terrain crawler dumper, the crawer dumper replaces traditional wheeled walking with rubber tracks,large carrying capacity,strong grip and low noise, at the same time, the crawler type walking device increases the contact area between the machine and the ground, Do not harm farmland and roads, Has good driving and through performance, it can adapt to complex anddifficult road conditions such as paddy fields, marshes, and muddy field roads. The specific size can be customized according to your needs. Strong carrying capacity, strong climbing ability, simple operation and convenient maintenance.
Specifications
| Model | KFD50 | |
| Machine Weight | 400Kg | |
| MAX Capacity | 500Kg | |
| Engine | Brand | RATO |
| Model | 130G | |
| Displacement (cc) | 208 | |
| Total(HP)*＠3600rpm | 6.5（4.8KW/3600） | |
| Fuel capacity (L) | 3.1 | |
| Oil capacity (L) | 0.6 | |
| Motor | Brand | Li Ke Hydraulics |
| Displacement | 200cc | |
| Max working pressure | 20MPa | |
| Max torque | 805Nm | |
| Working speed | 1.7/3.5（km/h） | |
| Mini turning radius | 0.95m | |
| Track center distance | 509mm | |
| Mini ground clearance | 85mm | |
| Working slope | 20° | |
| Hydraulic oil tank capacity | 7L | |
| Hydraulic oil type | 46#Anti-wear hydraulic oil | |
| Dumper box volume（m³） | 0.22（1040*730*590） | |

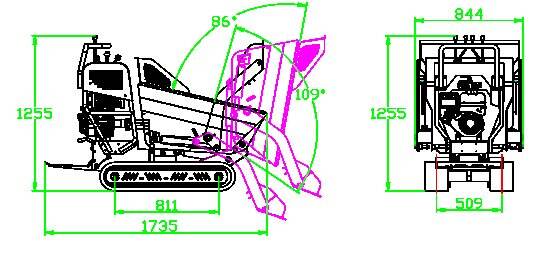

| LxWxH（mm） | 1735x844x1255 | |
Advantages
1. TOP QUALITY
① Select high-standard materials
② Strict control of production process
③ Get unanimous praise from users
2. TECHNICAL SUPPORT
① Quick answer of technical question
② Fast product research & development
③ Customized products
④ OEM
3. PROMPT DELIVERY
① Supply original spare parts freely
② Equipped with high stand accessories
③ Supply complete set of solution
FAQ
1. How long can we get the feedbacks after we send the inquiry?
We will reply to you within 24 hours, complex transactions no more than 48 hours, except holidays.
We have well-trained and experienced staff to answer all your inquiries in fluent English.
2. What product can you offer?
We have various log splitter, wood chipper and mini dumper.
3. Can you manfacture customized products?
We are a professional manufacturer, we can produce customized products according to customer demands.
So we accept OEM or ODM order and we can help you to design and put into product.
4. How long is your leading time?
Standard shipping date is 45days after receive deposit.
5. How to proceed an order to you?
First we will help you choose products and cofirm quantity of the products.
After confirm the price offer , we will make PI to you for advance payment.
We would arrange the production as soon as we get the payment.
6. How to guarantee the quality of your goods?
Our product production process is a product quality management control process, from acceptance of raw material to product package and inspection, that is a whole process of management control. Outgoing products will undergo 100% full inspection according to standards. Research and development of new product is carried out under fatigue test and destructive test according to standard requirements, volume production is verified after small scale production and small range trial sale as safety permits.
7. How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, during the guarantee period, we will send new machine with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call
according to real situation.
8. Do you offer guarantee for the products?
Yes, we offer 1 year warranty to our different products.
9. How to deliver the goods to us?
We will deliver products to Qingdao Port, our freight forwarding will deliver products to designated location according to
customer requirements.
10. What are your products mainly exported to?
Our products are mainly exported to North America, Europe ,Japan, South Korea, Thailand and other 22 countries and regions.
11. Can I become your distributor in my region?
It depends on which country you are from. Please contact us when you want to be our distributor.
After become our distributor, we will Protect your sales area, ideas of design and all your private information.
12.Q: What is the internal volume in liters?
A: The HCD500 and HCD500FL have a capacity of 262 liters.
13. Q:Are there dump trucks with four-wheel drive or only 6.5HP gasoline mini dumper? In particular, electronic mini dumper should be equipped with four-wheel drive.
A: The only four-wheel drive mini dumper is the MD250, which is powered by a 6.5HP gasoline engine. The ED500 and ED500H mini dumper are electric two-front-wheel drive, and the HCD500 and HCD500FL are fully hydraulic crawler mini dumper. Electric four-wheel drive mini dumper are under development.
14. Q: What slope can your dump truck climb?
A: All dump trucks have a climbing angle of 20°
15. Q: Please describe the braking system
A: The brakes of the HCD500 and HCD500FL dump trucks are achieved through the self-locking of the hydraulic system.
16. Q: Do the 9HP gasoline dump truck and the electronic dump truck include remote controls?
A: Neither has a remote control.
