Description

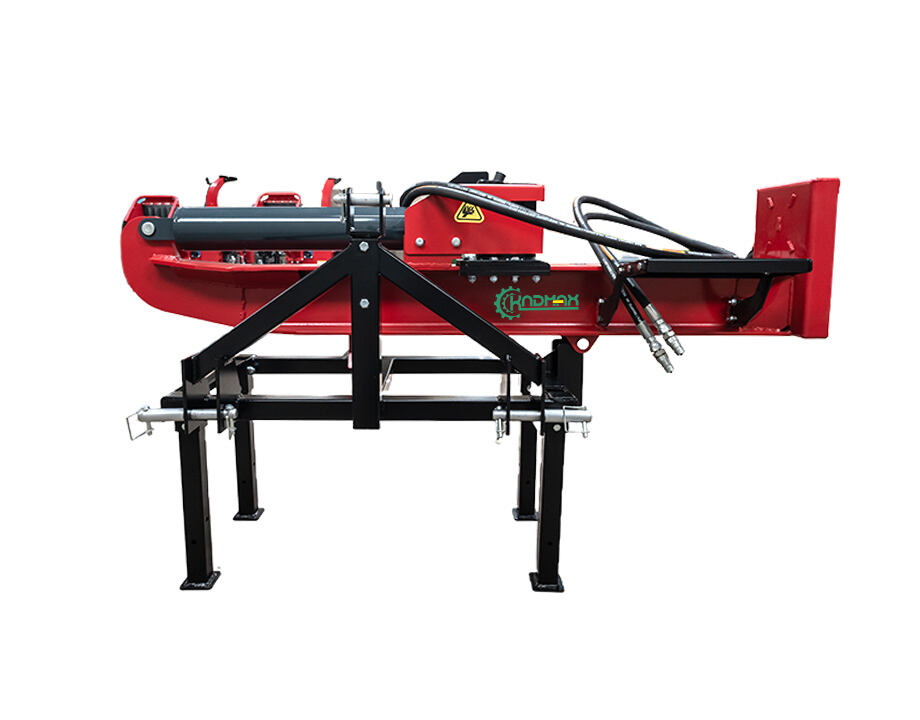

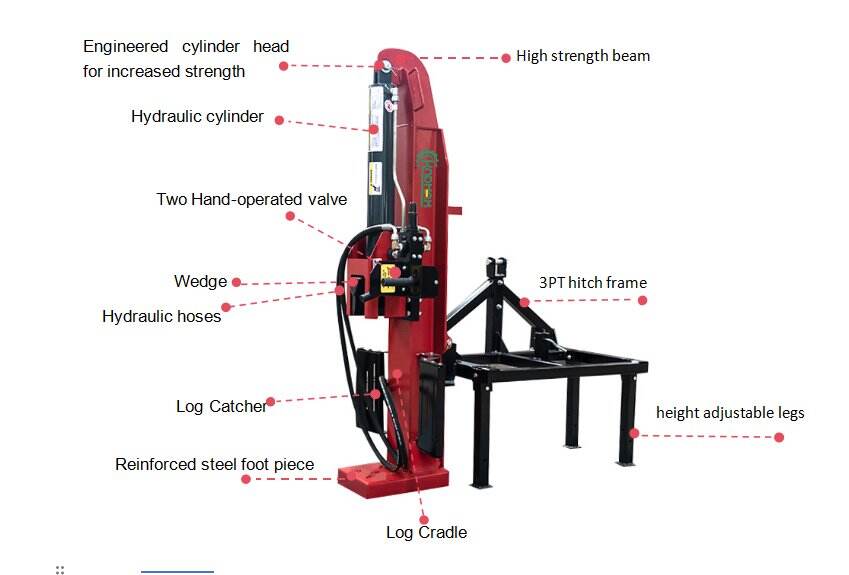

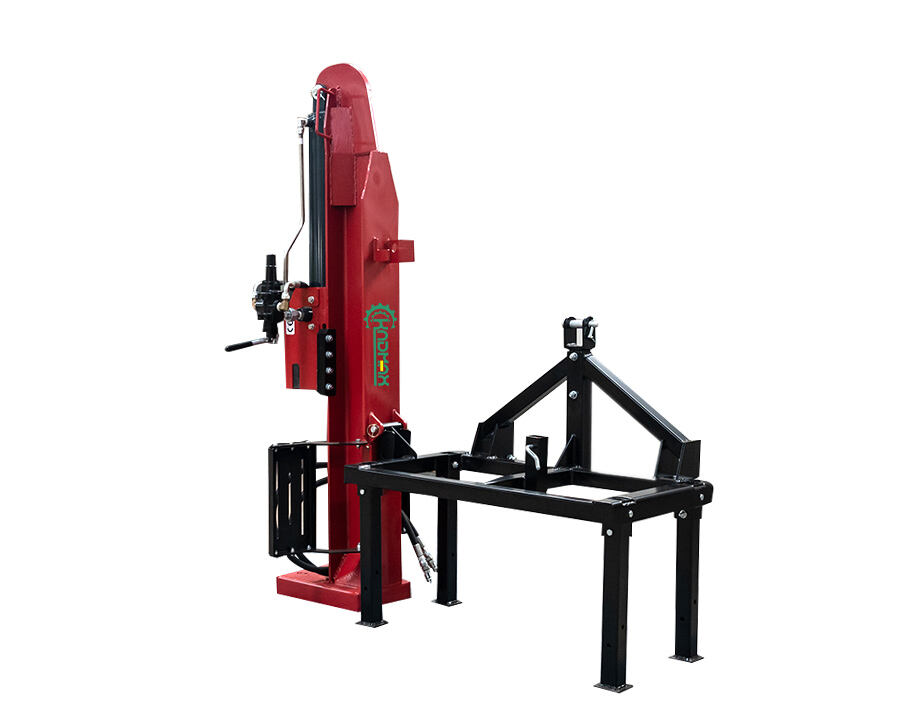

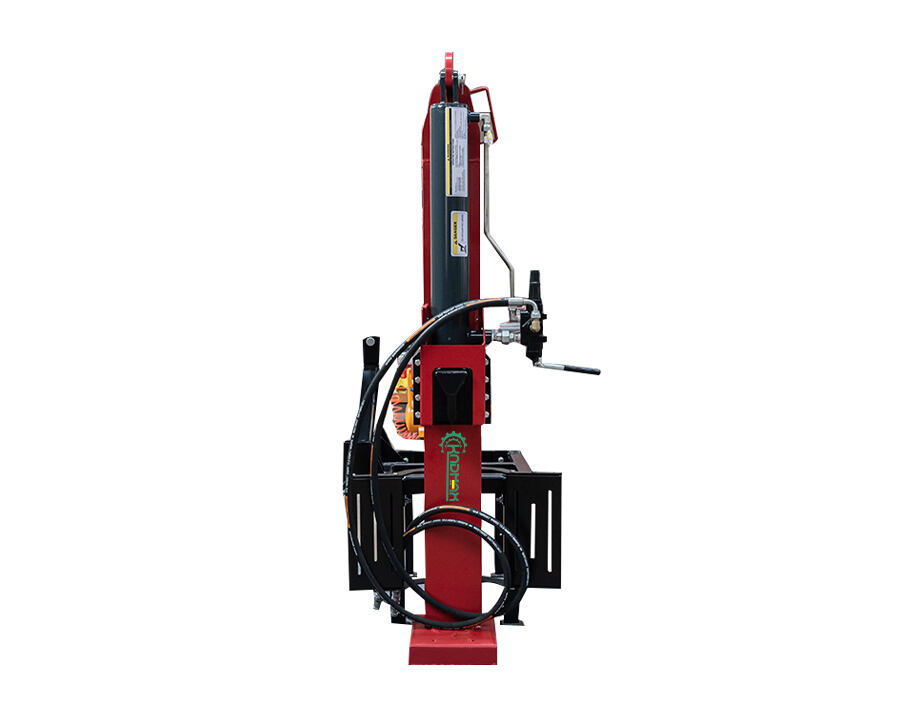

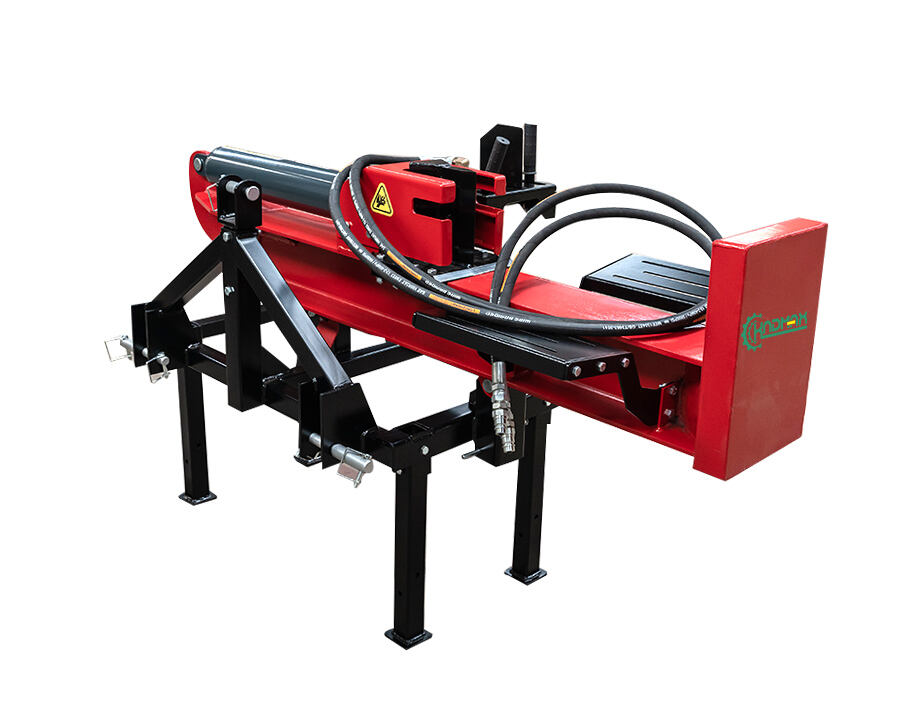

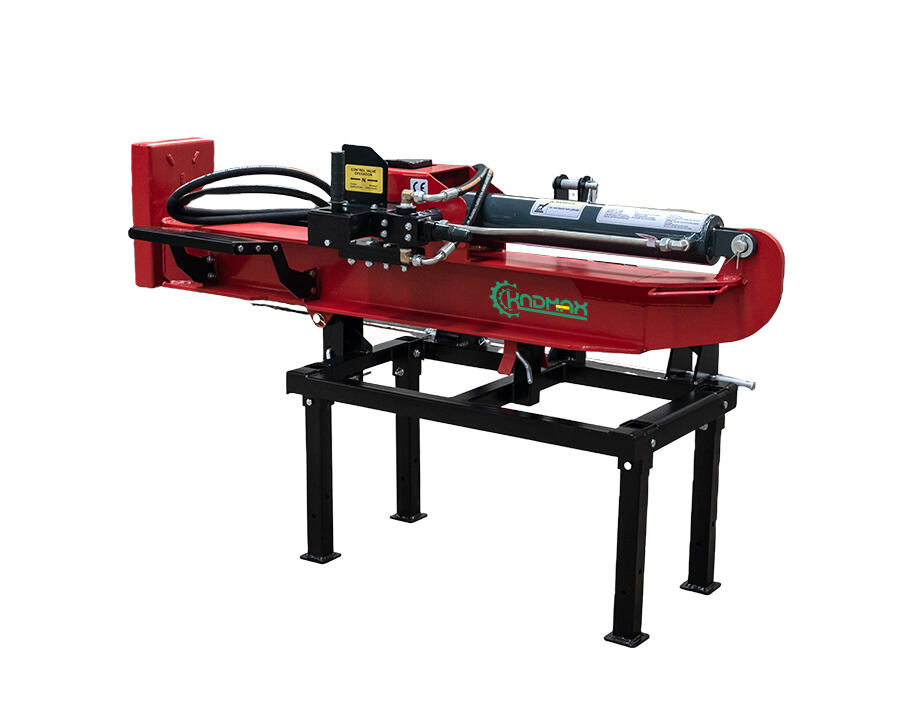

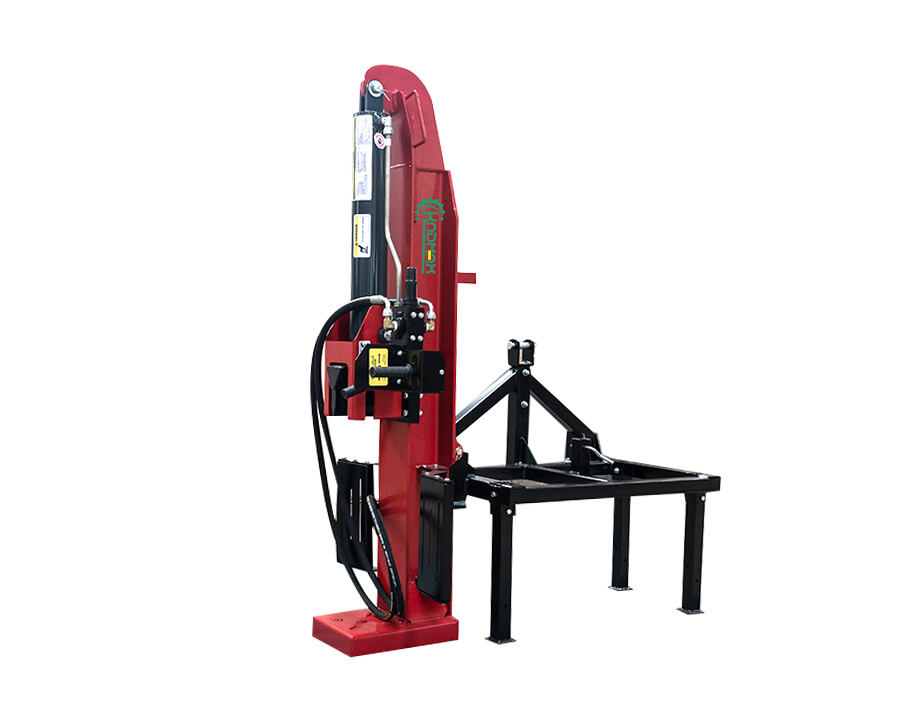

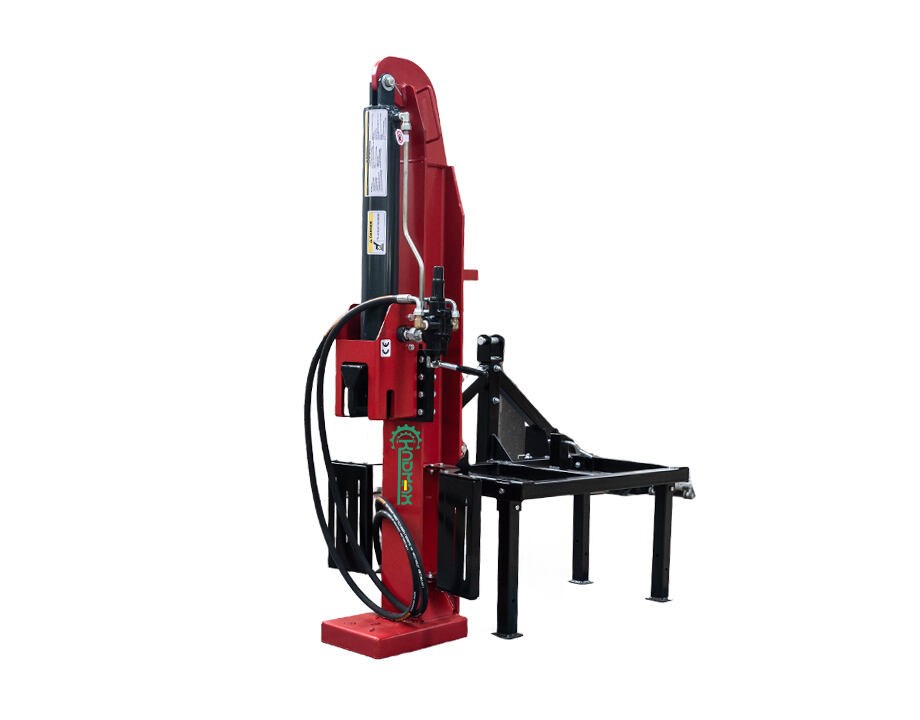

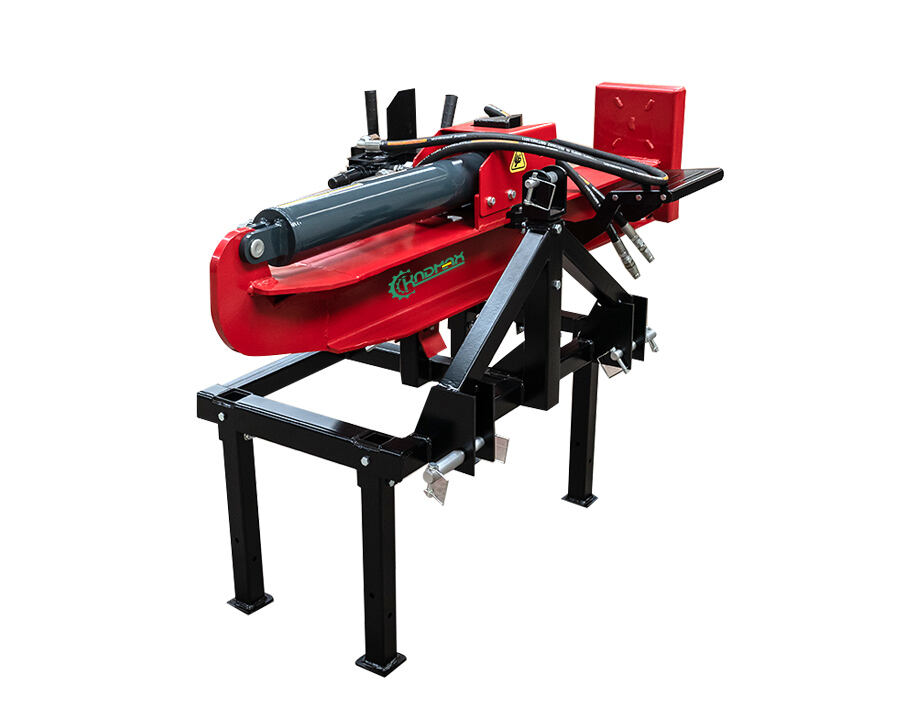

This Industrial 3 Point Tractor Drive Dual Action Horizontal / Vertical Log Splitter runs off your tractor's hydraulics and will split in both the horizontal or vertical position for the larger logs. This 3 point wood splitter is fully adjustable for any category 1 or category 2, 3-point hitch size. Working height is from waist level and can be lowered almost to the ground or as low as your 3 PT arms can go. We recommend your flow rate be a minimum of 8GPM. Your actual tonnage and split time will depend on your tractor's hydraulic output. Average split times can be from 6-11 seconds. The exact tonnage will depend on your tractor's output. Actual PSI of your tractor and other things such as environmental conditions can impact actual tonnage and cycle times. With the Industrial 3 Point Tractor Drive Dual Action Horizontal / Vertical Log Splitter, you will split wood like a pro and keep your fireplace full all winter.
Specifications
| Model: | STWS0122 | STWS0128 | STWS0135 |
| Split Force: | 22t（Depending on the tractor） | 28t（Depending on the tractor） | 35t（Depending on the tractor） |
| Log Capacity: | 630mm | 630mm | 630mm |
| Recommended hydraulic system pressure for tractors | 15-28MPa | 15-28MPa | 15-28MPa |
| Cylinder inner Diameter: | 4inch | 4.5inch | 5inch |
| Hydraulic Rod Diameter: | 44.5mm | 44.5mm | 44.5mm |
| Hydraulic Cylinder Stroke: | 600mm | 600mm | 600mm |
| Size of cleaver: | 200mm | 200mm | 200mm |
| Tractor mounted | CAT1, CAT2 | CAT1, CAT2 | CAT1, CAT2 |
| Recommended hydraulic flow rate for tractors | 8-12GPM | 10-15GPM | 13-18GPM |
| Overall dimensions: | 1795*796*1006mm | 1795*796*1006mm | 1795*796*1006mm |
| Net Weight | 207kg | 211kg | 220kg |
| Gross Weight | 227kg | 231kg | 240kg |
| Packing size (mm) | 1840×720×630 | 1840×720×630 | 1840×720×630 |
| 40HQ FCL | 76 | 76 | 76 |
| Net Weight | 207kg | 211kg | 220kg |
| Gross Weight | 227kg | 231kg | 240kg |
| Place of Origin | Qingdao, China | Qingdao, China | Qingdao, China |
| Brand Name | KNDMAX | KNDMAX | KNDMAX |
| Certification | CE | CE | CE |
Applications
Advantages
1. TOP QUALITY
① Select high-standard materials
② Strict control of production process
③ Get unanimous praise from users
2. TECHNICAL SUPPORT
① Quick answer of technical question
② Fast product research & development
③ Customized products
④ OEM
3. PROMPT DELIVERY
① Supply original spare parts freely
② Equipped with high stand accessories
③ Supply complete set of solution
FAQ
1. How long can we get the feedbacks after we send the inquiry?
We will reply to you within 24 hours, complex transactions no more than 48 hours, except holidays.
We have well-trained and experienced staff to answer all your inquiries in fluent English.
2. What product can you offer?
We have various log splitter, wood chipper and mini dumper.
3. Can you manfacture customized products?
We are a professional manufacturer, we can produce customized products according to customer demands.
So we accept OEM or ODM order and we can help you to design and put into product.
4. How long is your leading time?
Standard shipping date is 45days after receive deposit.
5. How to proceed an order to you?
First we will help you choose products and cofirm quantity of the products.
After confirm the price offer , we will make PI to you for advance payment.
We would arrange the production as soon as we get the payment.
6. How to guarantee the quality of your goods?
Our product production process is a product quality management control process, from acceptance of raw material to product package and inspection, that is a whole process of management control. Outgoing products will undergo 100% full inspection according to standards. Research and development of new product is carried out under fatigue test and destructive test according to standard requirements, volume production is verified after small scale production and small range trial sale as safety permits.
7. How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
Secondly, during the guarantee period, we will send new machine with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call
according to real situation.
8. Do you offer guarantee for the products?
Yes, we offer 1 year warranty to our different products.

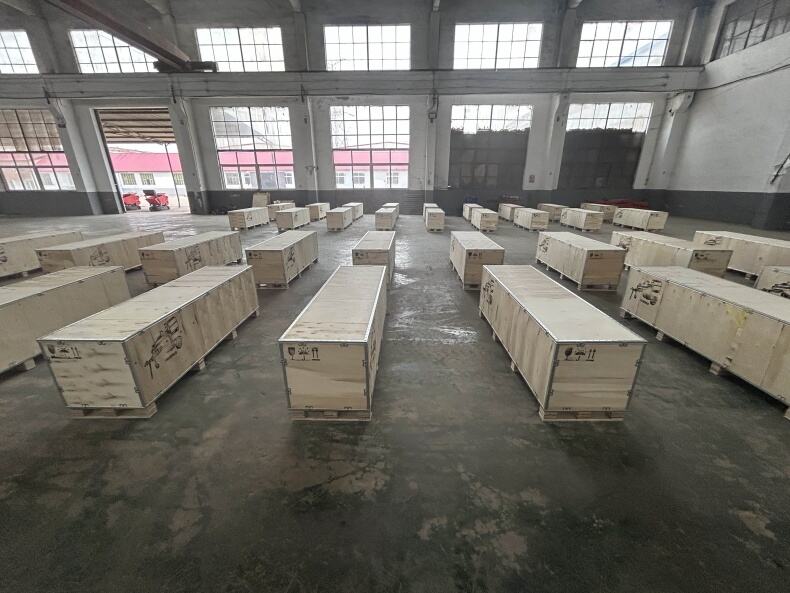

9. How to deliver the goods to us?
We will deliver products to Qingdao Port, our freight forwarding will deliver products to designated location according to
customer requirements.
10. What are your products mainly exported to?
Our products are mainly exported to North America, Europe ,Japan, South Korea, Thailand and other 22 countries and regions.
11. Can I become your distributor in my region?
It depends on which country you are from. Please contact us when you want to be our distributor.
After become our distributor, we will Protect your sales area, ideas of design and all your private information.
